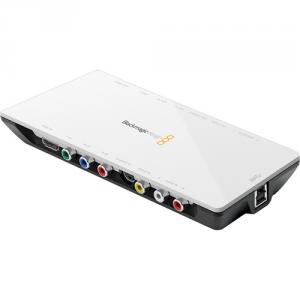

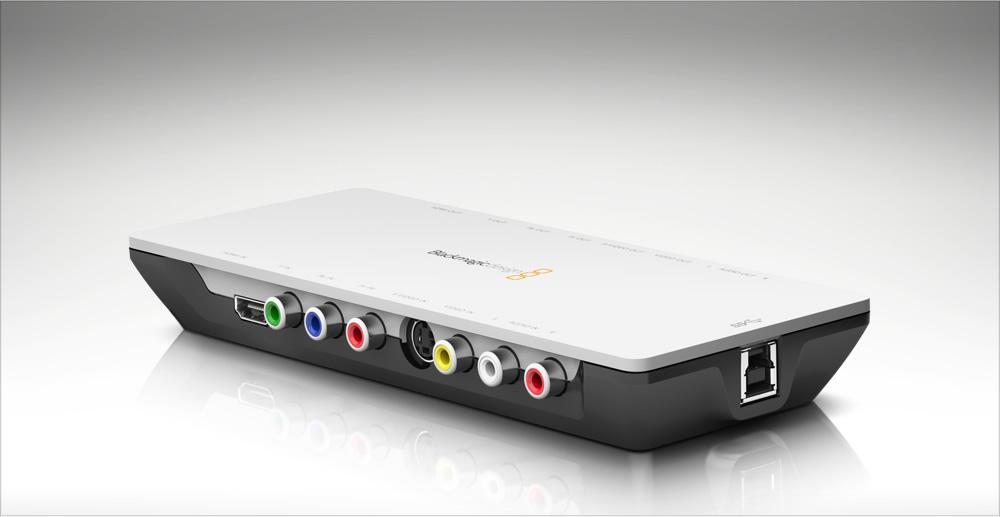

Intensity Shuttle, the world’s first 10 bit HD/SD editing solution for USB 3.0 computers! Simply plug in Intensity Shuttle and get access to incredible quality 10 bit HDMI, analog component, composite and s-video capture and playback. Intensity Shuttle’s innovative design is compact and portable, plus you can plug inline with your cables because input connections are on one side, and output connections on the other! Intensity Shuttle powers from the USB 3.0 connection so you don’t need cumbersome power supplies. Intensity Shuttle comes ready with advanced video technology such as HDMI 1.3 and 1080p electronics, so it will grow as faster high performance USB 3.0 computers are released in the future!

The Blackmagic Design Intensity Shuttle is a 10-bit HD/SD video capture/playback device that supports USB 3.0, and allows you to capture 10-bit HDMI or analog video directly from a camera onto your computer for professional editing or mere playback. With a neat, compact design, the Intensity Shuttle is very portable and easy to set up. As the input and output connections are on different sides, you can simply plug the unit in line with your existing cable setup.

Supporting HDTV 1080i/59.94, 1080i/50, 720p/59.94, 720p/50, the Intensity Shuttle allows easy and instant switching between HD and SD video standards. Additionally, using the USB 3.0 interface eliminates the need to compress visual data and thus saves on CPU processing power; this allows your CPU to solely focus on HD real-time effects. The video capture/playback device draws power from the USB 3.0 connector itself, and eliminates the need for a dedicated power source.

Fully compatible with multiple software image-editing solutions such as Premiere Pro, Photoshop, After Effects, Fusion, and Nuke, the Intensity Shuttle also supports all Windows USB 3.0 computers.

Note! Not compatible with Dell computers

10-bit HD/SD capture-playback allows you to capture and playback high-quality 10-bit HDMI data

USB 3.0 support ensures compatibility in the future when USB 3.0 is anticipated to become the main I/O standard

Direct capturing of 10-bit HDMI video allows speeds up editing and playback

Compact, lightweight design ensures that set up and installation are easy

Separate sides for inputs and outputs allow inline connectivity with existing cables

Support for multiple video standards ensures adaptability in varying types of setups

No compression required as the USB 3.0 interface is capable of handling HD video, thereby saving on CPU processing power

No separate power source required as the device draws power from the USB 3.0 connector itself

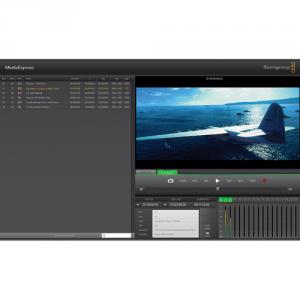

Compatible with multiple software image-editing solutions such as Premiere Pro, Photoshop, After Effects, Fusion, and Nuke

Connections	Digital Video Input: 1 x HDMI input. For legal reasons HDMI input is unable to capture from copy protected HDMI sources Digital Video Output: 1 x HDMI output Supported HDMI formats: 525 NTSC, 625 PAL, 720HD and 1080HD switchable HDMI Audio Input: 8 Channels HDMI Audio Output: 8 Channels Analog Video Input: Component, NTSC, PAL or S-Video Analog Video Output: Component, NTSC, PAL or S-Video Analog Audio Input: 2 Channel RCA HiFi audio in 24 bit Analog Audio Output: 2 Channel RCA HiFi audio in 24 bit SPDIF Audio Output: None Dual Rate support: HDMI and Analog Component switches between high definition and standard definition Sync Input: None Device Control: None. FireWire may be used for controlling some cameras Computer Interface: USB 3.0
Standards	SD Format Support: 625i/50, 625p PAL and 525i/59.94, 525p NTSC, 480p HD Format Support: 1080i50, 1080i59.94, 1080i60,1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 720p50, 720p59.94, 720p60 HDMI Video Sampling: 4:2:2 HDMI Color Precision: 4:2:2 HDMI Color Space: YUV 4:2:2 HDMI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit
Processing	Colorspace Conversion: Hardware based real time Real time effects: Adobe Premiere Pro internal effects in DV, MJPEG and uncompressed edit formats
Firmware	Firmware Upgrade: Firmware built into software driver. Loaded at system start, or via updater software
System Requirements	Installation: USB 3.0. Requires x58 based computer or better with a USB 3.0 connection. Does not support USB 2.0 capture and playback Operating System Compatibility: Compatible with Microsoft Windows
