CPUIntel® Socket 1156 Core™ i7 Processor/Core™ i5 Processor/Core™ i3 Processor/ Pentium® Processors
Supports Intel® Turbo Boost Technology*
* The Intel Turbo Boost Technology support depends on the CPU types.
** Refer to www.asus.com for Intel CPU support list
ChipsetIntel® H55 Express Chipset Memory 4 x DIMM, Max. 16 GB, DDR3 2200(O.C.)*/2133/1866/1800/1600/1333/1066 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
*Hyper DIMM support is subject to the physical characteristics of individual CPUs. Some hyper DIMMs only support one DIMM per channel. Please refer to Memory QVL for details.
** To reach DDR3 2200 MHz, you are required to use with Intel Core i7/Core i5 CPU without iGPU and install a discrete graphics card. When using Intel Core i5/Core i3/ Pentium CPU with iGPU, the maximum memory speed supported is 1600+ MHz
***Refer to www.asus.com or this user manual for the Memory QVL(Qualified Vendors Lists). Expansion Slots 1 x PCIe 2.0 x16
2 x PCIe 2.0 x1 (2.5GT/s, gray slots)
1 x PCI
VGA Multi-VGA output support: HDMI and RGB ports
Supports HDMI with max. resolution 1920x 1200 @ 60Hz
Supports RGB with max. resolution 2048x 1536 @ 75 Hz
Maximum shared memory of 1748 MB Storage Intel® H55 Express Chipset built-in
6 xSATA 3.0 Gb/s ports
VIA VT6415 PATA controller
1 xUltraDMA 133/100 for up to 2 PATA devices
LAN Gigabit LAN controller Realtek® 8111E Gigabit LAN controller featuring AI NET2
Audio Realtek® ALC887 8-Channel High Definition Audio CODEC
- Support Jack-dectection, Multi-streaming,Front Panel Jack-Retasking (Only in Mic in port)
- Optical S/PDIF out ports at board & back I/O USB 12 USB 2.0/1.1 ports (6 ports at mid-board, 6 ports at back panel) ASUS Unique Features ASUS Exclusive Overclocking Features
- GPU Boost
- TurboV
- Turbo Key
ASUS Power Solutions
- ASUS EPU
ASUS Express Gate
ASUS Quiet Thermal Solution
- ASUS Fanless Design: Heat-sink solution
ASUS EZ DIY
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
Overclocking FeaturesPrecision Tweaker
- vCore: Adjustable CPU voltage at 0.00625V increment
- vIMC: Adjustable IMC voltage at 0.00625V increment
- vDRAM Bus: Adjustable DRAM voltage at 0.015V increment
- vPCH: Adjustable PCH voltage at 0.00625V increment
- vCPU_PLL: Adjustable CPU_PLL voltage at 0.05V increment
- iGPU: Adjustable iGPU voltage at 0.00625V increment
SFS (Stepless Frequency Selection)
- Internal Base Clock tuning from 80MHz up to 500MHz at 1MHz increment
- PCI Express frequency tuning from 100MHz up to 200MHz at 1MHz increment (only for Lynnfield CPU)
Overclocking Protection:

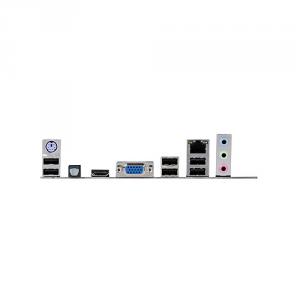

- ASUS C.P.R.(CPU Parameter Recall) Special Features 100% All High-quality Conductive Polymer Capacitors Back Panel I/O Ports 1 x PS/2 Keyboard/Mouse Combo port
1 x D-Sub
1 x HDMI
1 x S/PDIF Out (Optical)
1 x LAN(RJ45) port
6 x USB 2.0/1.1
3 x Jack (8-channel) Audio I/O Internal I/O Connectors 3 x USB connectors support additional 6 USB ports
1 x IDE connector
6 x SATA connectors
1 x CPU Fan connector (1x4-pin)
1 x Chassis Fan connector (1x3-pin)
1 x LPT connector
1 x S/PDIF Out Header
Front panel audio connector
1 x COM connector
1 x Clear CMOS jumper
1 x 24-pin ATX Power connector
1 x 8-pin ATX 12V Power connector
System Panel
BIOS 64 Mb Flash ROM , SPI, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.6, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

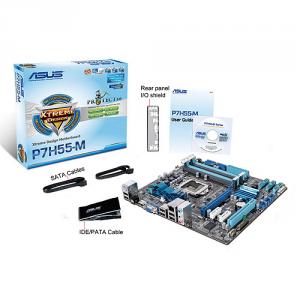

ManageabilityWfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE AccessoriesUser's manual
1 x UltraDMA 133/100 cable
2 x Serial ATA 3.0Gb/s cables
1 x I/O Shield Support DiscDrivers
Anti-virus software (OEM version)
ASUS Update
ASUS Utilities
Form Factor uATX Form Factor
9.6 inch x 8.8 inch ( 24.4 cm x 22.4 cm )
