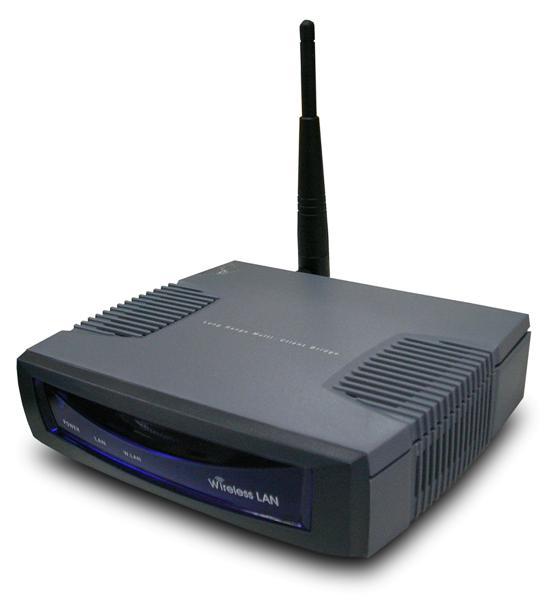

EnGenius ECB-8610S 600mW Wireless Access Point/Client Bridge 802.11a/b/g

Spausk čia vaizdo padidinimui	Kaina: 377.23Lt (311.76Lt be PVM) Kodas: ECB-8610s Kiek.:	Svarbiausi momentai: The Wireless High Power and High Gain Multi-Client Bridge/Access Point/ WDS (wireless distribution system) operates seamlessly in the dual band 2.4/5 GHz frequency spectrum supporting the 802.11b (2.4GHz, 11Mbps) and the newer, faster 802.11g (2.4GHz, 54Mbps) / 802.11a (5GHz, 54Mbps) wireless standards. ECB-8610S have high transmitted output power and high receivable sensitivity. High output power and high sensitivity can extend range and coverage to reduce the roaming between APs to get more stability wireless connection. It also can reduce the expense of equipment in the same environment. To protect your wireless connectivity, ECB-8610S encrypt all wireless transmissions through 64/128-bit WEP data encryption and also supports WPA2/WPA/802.1x for powerful security authentication. The MAC addresses filter lets you select exactly which stations should have access to your network.
Pridėti į krepšelį Žiūrėti krepšelį Ištikrinti

Aprašymas

Technical Specifications

Data Rates
1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps

Standards
IEEE802.11a/b/g, IEEE802.3, IEEE802.3u, IEEE802.3af, IEEE802.1f, IEEE802.1x

Compatibility
IEEE 802.11a/ IEEE 802.11g/ IEEE 802.11b

Power Requirements
Power Supply: 90 to 240 VDC ± 10％ (depends on different countries)
Device: 12 V/ 1A
Ethernet POE in: 36~57VDC for 802.3af

Status LEDs
LAN: Link, WLAN: Link, Power: on/off

Regulation Certifications
FCC Part 15/UL, ETSI 300/328/CE

RF INFORMATION

Frequency Band
802.11a: 5.15~5.25GHz, 5.25~5.35GHz, 5.47~5.725GHz, 5.725~5.825GHz
802.11b/g: 2.4 to 2.484 GHz, programmable for different country regulations

Media Access Protocol
Carrier Sense Multiple Access with Collision Avoidance (CSMA/CA)

Modulation Technology
DBPSK @ 1Mbps
DQPSK @2Mbps
CCK @ 5.5 & 11Mbps
BPSK @ 6 and 9 Mbps
QPSK @ 12 and 18 Mbps
16-QAM @ 24 and 36 Mbps
64-QAM @ 48 and 54 Mbps

Operating Channels
11 for North America, 14 for Japan, 13 for Europe,

Receive Sensitivity (Typical)
• 5.15~5.85G(IEEE802.11a)
6Mbps@ -88dBm;
54Mbps@ -70dBm
• 2.412~2.472G(IEEE802.11g)
6Mbps@ -91dBm;
54Mbps@ -74dBm
• 2.412~2.472G(IEEE802.11b)
11Mbps@ -90dBm
1Mbps@ -95dBm

Available Transmit Power (Typical)
• 5.150~5.250 GHz(IEEE802.11a)
22dBm @6 ~ 24Mbps
20dBm @36Mbps
18dBm @48Mbps
17dBm @54Mbps
• 5.250~5.350GHz(IEEE802.11a)
20dBm @6 ~ 24Mbps
18dBm @36Mbps
16dBm @48Mbps
15dBm @54Mbps
• 5.470~5.725GHz(IEEE802.11a)
21dBm @6 ~ 24Mbps
19dBm @36Mbps
17dBm @48Mbps
16dBm @54Mbps
• 5.745~5.85GHz (IEEE802.11a)
20dBm @6 ~ 24Mbps
18dBm @36Mbps
16dBm @48Mbps
15dBm @54Mbps
• 2.412~2.472G(IEEE802.11g)
27dBm @6 ~ 24Mbps
25dBm@36Mbps
24 dBm@48Mbps
23dBm@54Mbps
• 2.412~2.472G(IEEE802.11b)
28dBm. @1, 2, 5.5 and 11Mbps

RF Connector
TNC Type (Female Reverse)

Networking

Topology
Ad-Hoc, Infrastructure

Operation Mode
Point-to-Point/Point-to-Multipoint
Bridge/AP/Client Bridge/WDS

Interface
One 10/100Mbps RJ-45 LAN Port

Security
IEEE802.1x Authenticator/RADIUS Client (EAP-MD5/TLS/TTLS) Support in AP Mode
WPA/WPA2 supplicant support in Client Bridge mode
WPA2/WPA/Pre-share Key (PSK)/AES/TKIP
MAC address filtering (AP mode)
Hide SSID in beacons

IP Auto-Configuration
DHCP client/server

Management

Configuration
Web-based configuration (HTTP)
Telnet Configuration
SNMP V1

Firmware Upgrade
Upgrade firmware via web-browser

Environmental

Temperature Range
Operating: -10°C to 50°C (14°F to 132°F)
Storage: -40°Cto 70°C (40°F to 158°F)

Humidity
5%-95% Typical
