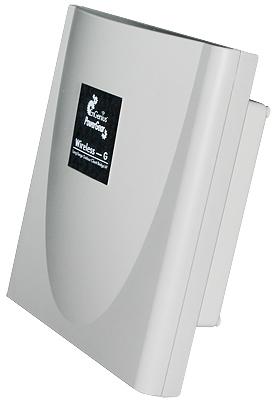

Technical Specifications

Data Rates
1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps

Standards
IEEE802.11a/b/g, IEEE802.3, IEEE802.3u, IEEE802.3af, IEEE802.1f, IEEE802.1x

Compatibility
IEEE 802.11g/ IEEE 802.11b

Power Requirements
Active Ethernet (Power over Ethernet) –48 VDC/0.375A
External Unit: Auto sensing 100/240 VAC; 50/60 Hz
Regulation Certifications
FCC Part 15/UL, ETSI 300/328/CE

RF INFORMATION

Frequency Band
802.11a: 5.15~5.25GHz,
5.25~5.35GHz, 5.47~5.725GHz,
5.725~5.825GHz
802.11b/g: U.S., Europe and Japan
product covering 2.4 to 2.484 GHz,
programmable for different country
regulations

Media Access Protocol
Carrier Sense Multiple Access with
Collision Avoidance (CSMA/CA)

Modulation Technology
Orthogonal Frequency Division
Multiplexing (OFDM)
DBPSK @ 1Mbps
DQPSK @2Mbps
CCK @ 5.5 & 11Mbps
BPSK @ 6 and 9 Mbps
QPSK @ 12 and 18 Mbps
16-QAM @ 24 and 36 Mbps
64-QAM @ 48 and 54 Mbps

Operating Channels
802.11b/g:
11 for North America, 14 for Japan, 13
for Europe,
2 for Spain, 4 for France
802.11a:
US/Canada:12 non-overlapping
channel (5.15~5.35GHz, 5.725~5.825GHz)
Europe:19 non-overlapping channel
(5.15~5.35GHz, 5.47~5.825GHz)
Japan: 4 non-overlapping channel
(5.15~5.25GHz)
China: 5 non-overlapping channel
(5.725~5.85GHz)

Receive Sensitivity (Typical)
• 5.15~5.85G(IEEE802.11a)
6Mbps@ -88dBm;
54Mbps@ -70dBm
• 2.412~2.472G(IEEE802.11g)
6Mbps@ -91dBm;
54Mbps@ -74dBm
• 2.412~2.472G(IEEE802.11b)
11Mbps@ -90dBm
1Mbps@ -95dBm

Available transmit power
(Typical)
• 5.150~5.250 GHz(IEEE802.11a)
22dBm @6 ~ 24Mbps
20dBm @36Mbps
18dBm @48Mbps
17dBm @54Mbps
• 5.250~5.350GHz(IEEE802.11a)
20dBm @6 ~ 24Mbps
18dBm @36Mbps
16dBm @48Mbps
15dBm @54Mbps
• 5.470~5.725GHz(IEEE802.11a)
21dBm @6 ~ 24Mbps
19dBm @36Mbps
17dBm @48Mbps
16dBm @54Mbps
• 5.745~5.85GHz (IEEE802.11a)
20dBm @6 ~ 24Mbps
18dBm @36Mbps
16dBm @48Mbps
15dBm @54Mbps
• 2.412~2.472G(IEEE802.11g)
27dBm @6 ~ 24Mbps
25dBm@36Mbps
24 dBm@48Mbps
23dBm@54Mbps
• 2.412~2.472G(IEEE802.11b)
28dBm. @1, 2, 5.5 and 11Mbps

Antenna
802.11a: Embedded patch antenna
16dBi (5GHz)
802.11b/g: SMA connector 5dBi (2.4GHz)

NETWORKING

Topology
Ad-Hoc, Infrastructure

Operation Mode
Point-to-Point/ Point-to-Multipoint
Bridge/ AP/ Client Bridge/ WDS

Interface
Wireless IEEE802.11b/g
One 10/100 RJ-45 port

Security
- IEEE802.1x Authenticator RADIUS Client (EAP-MD5/TLS/TTLS) Support in AP Mode
- IEEE802.1x Supplicant (EAP-MD5/TLS/TTLS, PEAP) support in Client Bridge Mode
- WPA /WPA2/ Pre Share KEY (PSK) with TKIP/AES
- MAC address filtering (AP only)
- Hide SSID in beacons IP Auto-configuration DHCP client/server

MANAGEMENT

Configuration
Web-based configuration (HTTP)
Telnet Configuration
SNMP V1,

Firmware Upgrade
Upgrade firmware via web-browser
Serial Interface (RS-232)

PHYSICAL

Dimensions (HxWxD)
163.8(L)mm * 135.2(W)mm *
47.0(H)mm

Weight
1.2 Kg (2.6 lbs)

ENVIRONMENT

Temperature Range
Operating: 0°C to 65
Storage: -40°C to 80°

Humidity (non-condensing)
5%~95% Typical
