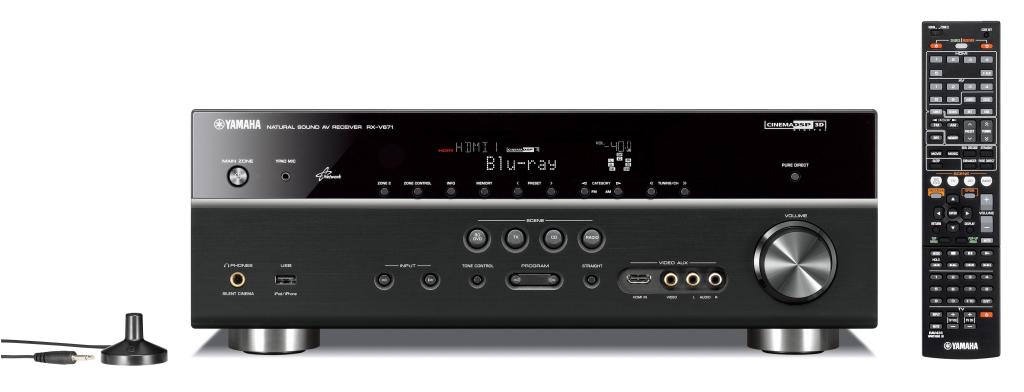

AV Receiver
Amplifier Section |
Channel |
7.1 |
Rated Output Power (1kHz, 1ch driven) |
125W (8ohms, 0.9% THD) |
Rated Output Power (1kHz, 2ch driven) |
105W (8ohms, 0.9% THD) |
Rated Output Power (20Hz-20kHz, 2ch driven) |
90W (8ohms, 0.09% THD) |
Dynamic Power per Channel (8/6/4/2 ohms) |
130/170/200/240W |
Surround Sound Processing |
CINEMA DSP |
Yes (3D) |
DSP Programs |
17 |
Compressed Music Enhancer |
Yes |
Virtual Presence Speaker |
Yes |
Dialogue Lift |
Yes |
SILENT CINEMA / Virtual CINEMA DSP |
Yes |
Dolby TrueHD |
Yes |
Dolby Digital Plus |
Yes |
Dolby Pro Logic IIx |
Yes |
DTS-HD Master Audio |
Yes |
Audio Features |
Pure Direct |
Yes (with video on mode) |
YPAO sound optimization |
Yes |
Adaptive DRC (Dynamic Range Control) |
Yes |
Initial Volume & Maximum Volume Setting |
Yes |
Bi-amp capability |
Yes |
Audio Delay |
Yes (0-250 ms) |
192kHz/24-bit DACs for all channels |
Yes (Burr-Brown) |
Video Features |
HDMI 3D passthrough |
Yes |
HDMI Audio Return Channel |
Yes |
Component upconversion |
Yes |
HDMI upscaling |
Yes (Analog to HDMI / HDMI to HDMI) |
Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync |
Yes |
Extensive Connection |
HDMI Input/Output |
6 (front 1) / 1 |
HDMI CEC |
Yes (SCENE, Device Control) |
USB Input |
iPod/iPhone, USB Memory, Portable Audio Player |
Network Port |
with access to Pandora/Rhapsody/SIRIUS Internet Radio/Napster/vTuner
Internet Radio services. Also DLNA 1.5 and Win 7 Compatible. |
Dock Port |
1 (for optional YDS-12, YID-W10 or YBA-10) |
Front AV Input |
HDMI/USB/Analog Audio/Composite |
Digital Audio Input/Output: Optical |
2 / 0 |
Digital Audio Input/Output: Coaxial |
2 / 0 |
Analog Audio Input/Output |
5 (front 1) / 1 |
Component Video Input/Output |
2 / 1 |
Composite Video Input/Output |
5 (front 1) / 1 |
Preout |
Subwoofer |
Headphone Output |
1 |
Tuner Section |
FM/AM Tuner |
Yes |
SIRIUS Satellite Radio Ready |
Yes |
User Interface |
On-screen display |
Advanced Graphical User Interface with Status |
SCENE |
SCENE (4 sets) |
iPhone App Control |
Yes |
Web Browser Control |
Yes |
Remote Control Unit |
Yes (Preset) |
Audio Technical Specifications |
Signal-to-Noise Ratio |
100 dB or more (Pure Direct, 250 mV) |
Zone Control |
Zone 2 Audio Output |
Line output |
Powered Zone |
Zone 2 |
+12V Trigger Output |
1 |
Remote (IR) Input/Output |
1/1 |
General |
Standby Power Consumption (IR only) |
≤0.1W |
Auto Power Down |
Yes |
Dimensions (W x H x D) |
17-1/8'' x 6-3/8'' x 14-1/4" |
Weight |
23.1 lbs. |
Shipping Dimensions (W x H x D) |
17-1/2" x 9-1/2" x 20-7/8" |
Shipping Weight (lbs.) |
27.56 lbs. |
