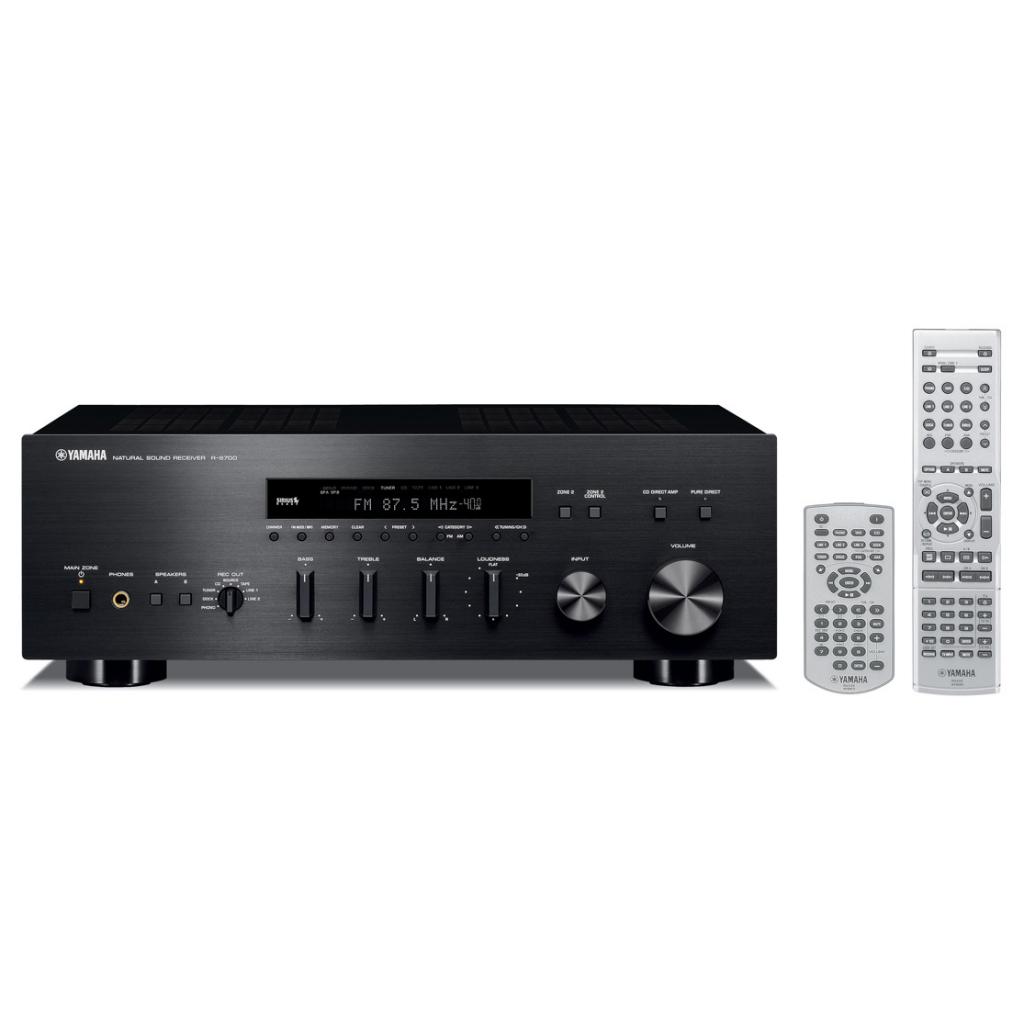

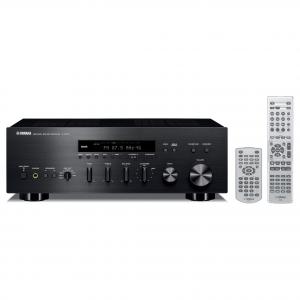

R-S700 Natural Sound Stereo Receiver
Elite class stereo receiver combining ToP-ART technology and ART Base
chassis construction with goldplated speaker terminals and dual
aluminum heat sinks for crisp, clean sound. Advanced features include
continuously variable loudness control, CD Direct Amplification, along
with Yamaha iPod dock connection, SIRIUS Radio Ready, 40-station AM/FM
and zone 2 control for endless music enjoyment options.
MAIN FEATURES
- Dual aluminum-extruded heat sinks ensure effective heat dissipation and help achieve crisp, clean sound.
- Gold-plated speaker terminals and RCA in/out jacks are durable and provide highest quality connections.
- With a straight connection to the CD input, CD Direct Amplification maximizes CD source S/N ratio.
- An iPod Dock port provides highest quality sound from an iPod. iPod Video Out allows connection to a TV.
- With a subscription to SIRIUS Satellite Radio, you can greatly expand your choice of high quality radio programs.
- This receiver makes it easy for someone in another room to listen to the music and even control playback.
Advanced Features
- 100W x 2 high power output
- ToP-ART (Total Performance Anti-Resonance Technology)
- 40-station AM/FM random access preset tuning
- Pure Direct for short and direct signal path
- Continuously Variable Loudness Control
- Speaker A, B or A+B selection
- Subwoofer Out
- Rec Out selector
- Pre-main coupler
- Power management (Auto power off)
- Terminal for detachable AC cable
- Preset and Zone 2 remote controls
- Dimensions (W x H x D): 17-1/8" x 6" x 15-1/4"
Zone Control
Multi-Zone Compatibility
Wouldn't it be nice to be
able to enjoy your favorite music in more than one room? The R-S700 has a
number of specialized functions that make it convenient to use in
custom installations. With another receiver or amplifier plus a pair of
speakers in a second room, the people in both rooms can hear the music
that is playing. You can even put a pair of speakers in a third room and
listen there as well. What's more, you can control playback of the main
system from the second room with the Zone 2 remote control.
12V Trigger Out (Control Out)
The 12V trigger output can
be used to automatically power on the components in Zone 2 when the main
power is turned on. Output is a high 100mA, so relay operation is
possible.
Main/Zone 2 Power Link
When you switch on the R-S700 in the main room, the unit in Zone 2 will also come on.
Remote (IR) 2 In/Out and Remote 2 In
These terminals let you connect an IR signal receiver for wireless remote control between the Main Zone and Zone 2.
Speaker A/B and A+B Selection
Enjoy music in a third room!
Just connect a second pair of speakers to the Speaker B terminals and
you can listen to either pair or both of them at the same time.
Dedicated Zone remote Control
The R-S700 provides a second remote unit for controlling operation of the main system from Zone 2.
The Look and Texture of Quality
Offers the look and feel
of the top-class A-S2000, with elegant aluminum front panel and silky
touch volume/selector knobs. You can feel Yamaha's commitment to quality
when you touch the knobs.
ToP-ART Sound Quality Design
ToP-ART (Total Performance
Anti-Resonance Technology) design uses a symmetrical layout for accurate
sound field reproduction and the ART Base to eliminate effects from
external vibration.
Pure Direct
Music signals travel the shortest possible
route, bypassing the buffer amp and tone, loudness and balance controls
to virtually eliminate any signal degradation for the purest sound
quality.
New Speaker Terminals
These high grade speaker terminals
have gold plating for best connection and outstanding durability. The
pitch between jacks is wider for easier insertion.
Highest Quality Parts
The quality of each individual part,
as well as how they work together, basically determines the sound
quality of any component. Yamaha uses only very high quality parts,
carefully selected and tested.
Continuously Variable Loudness Control
Our ears lose
sensitivity to high and low frequencies at low volume levels. This
control lets you turn down the volume while maintaining the optimum
frequency response.
Special Power Supply for Clear iPod Sound
The iPod dock
has an independent power supply to prevent operating or charging current
from the iPod from flowing into the amp ground signal. This ensures
optimum iPod sound quality.
Balanced System for Minimal Noise
An unbalanced interface
is subject to commonmode voltage noise, so Yamaha uses a balanced system
to receive the iPod signal. This makes a significant contribution to
reducing noise in the system for higher sound quality.
New Remote Controls
The R-S700 preset remote control is
designed to make it easy to operate the receiver's many functions. The
R-S700 provides a second remote that allows system control from Zone 2.
|
